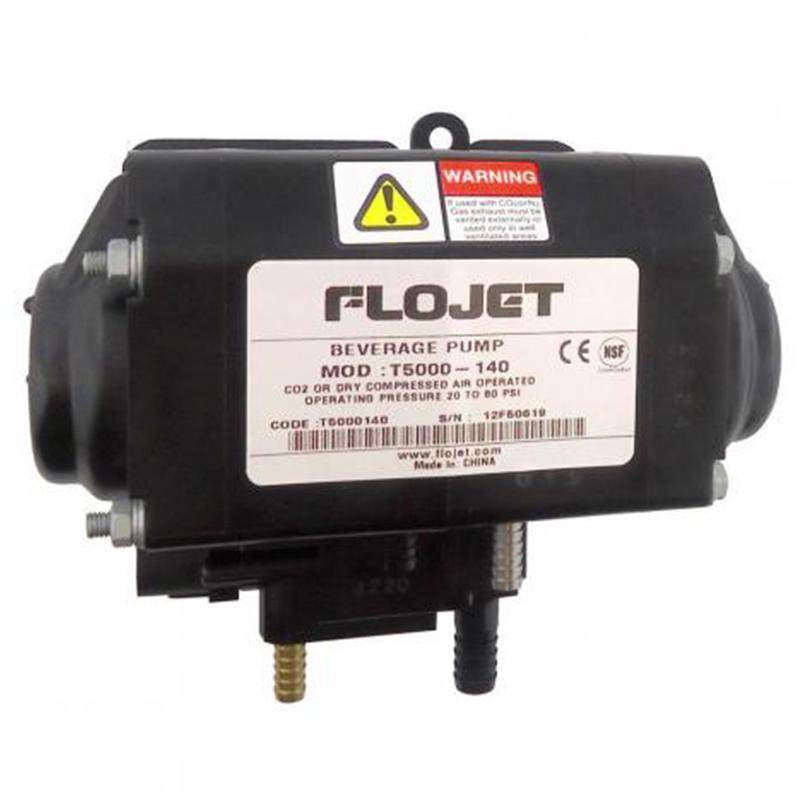

Flojet Pump

CODE: Z-FLOPUMP154

ADD TO QUOTE

Description

Flojets New T5000 Series air operated diaphragm pump provides superior performance and reliability for dispensing bag-in-box syrups, juice concentrate, teas, wines, and liquor. Engineered for ultimate performance and reliability, Flojets T5000 Series air operated diaphragm pump provides excellent chemical resistance for a wide variety of syrups and concentrates. Flojets rigorously tested, customer-inspired design features have extended the pump?s service life to 50,000 gallons (140,000 liters), up 25% over its predecessor, the N5000 Series.

Features

Pump Features and Benefits

• Customer inspired design improvements extend the pump’s life by 25%
• New air inlet quick disconnect ports for easy CO2 installation and servicing
• New glass filled polypropylene body material for improved resistance to harsh syrups
• Snap-on bracket allows for easier maintenance and servicing as well as simple slide mounting to BIB racks

New Cutaway Features Overview:

Quick Disconnect Exhaust Fitting
Improved Shaft / Slipper Seal Design
Designed for Use with Slide Rail Bracket
Material upgrade to Polypropylene

Specs

Specifications:

Pump Design: Positive Displacement, Double Diaphragm
Power Source: CO2 Gas, Nitrogen or Compressed Filtered Air
Materials of Construction (Wetted Parts): Polypropylene, Santoprene®, EPDM, 302 or 304 Stainless Steel Spring
Temperature Limits: 34? - 120?F (1.1? - 49?C)
Weight: 1.19lbs (0.54kg)
Dimensions: 5.26" H x 6.18" W x 2.89" D (133.6mm x 156.8mm x 73.5mm)
Displacement: 2.5 oz per cycle
Self Priming: Up to 10ft (3.05m)
Operating Pressure: 20 psi (1.4 bar) min / 80 psi (5.5 bar) max
Flow Rate: 4.0oz (118.3ml)/sec - Open Flow
Approvals: CE, NSF Standard 18
Warranty: 5 Years
